Topic: Reference Energy Systems Diagram - T&DSubscribe | Previous | Next
Sunay Gupta 11/29/2015
632 Views Hi,
We are developing the model for DRC and when we completed feeding all the demand requirements and details about T&D, we see that in the Diagram, the T&D component is not connected to Demand for Generated Electricity. We have checked that both demand and generated fuels are electricity and even in Sankey diagram, the generated electricity is connected to Households, Industry and Commercial.

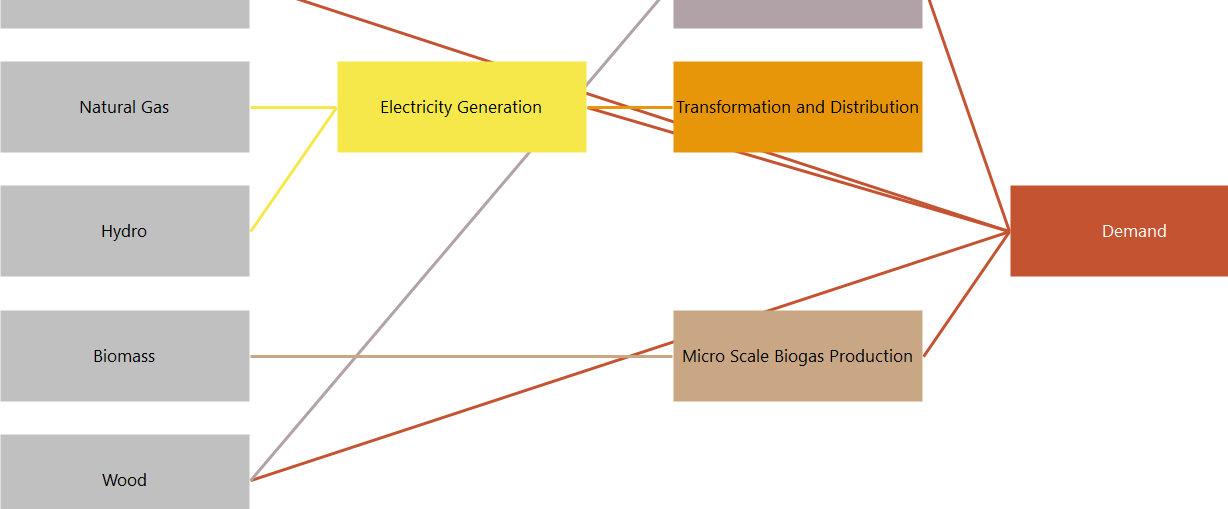

Could anyone please help. I have attached snapshot of the diagram.
Taylor Binnington 11/30/2015
626 Views Hi Sunay,
Sorry for the trouble. It's likely that the connecting line is not appearing due to an error in LEAP which we've seen before. This should not affect LEAP's calculation, but only the Diagram view itself. Since we're moving away from the Diagram view in favor of Sankey Diagrams, we can't commit to fixing the problem with the Diagram view.
Take care,
Taylor
