Dear all,

I need a help on how to get back the diagram view option in LEAP latest version.

Thank you

Regards,

Husain

The Diagram View was removed from LEAP last year and has been replaced by the Sankey Diagram, available through the Energy Balance View. The Sankey Diagram provides superior visualization compared to the old Diagram View and also shows energy flow quantities.

For more info on the Energy Balance View, check out the following help page: https://www.energycommunity.org/Help/Views/Energy_Balance_View.htm

Thanks!

Emily

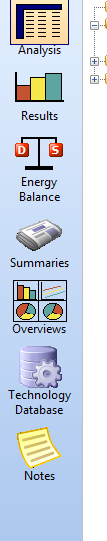

A small correction to the previous post. The Diagram View has not yet been removed in the current version of LEAP, however it is possible that you have permanently hid it from the View Bar unknowingly. While we encourage you to start using the Sankey Diagram, you can still use the Diagram View at this time.

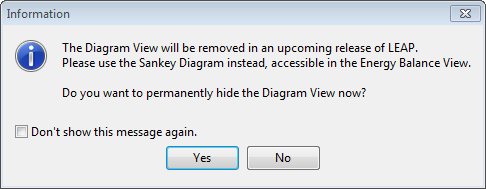

To do so, select "General: Reset Prompts" from the main menu, then press Ctrl-Alt-D on your keyboard to switch to Diagram View. When you see the dialog box (shown below), press "No" and the Diagram View will be shown.

Thanks,

Emily
